ASTM GRADE 60-30 OR HIGHER

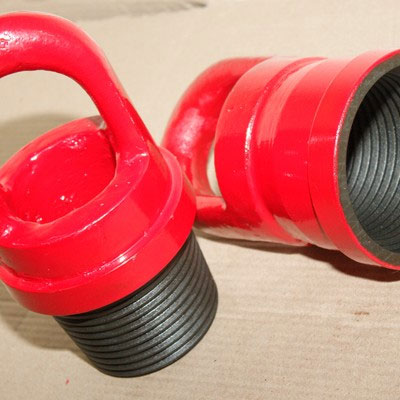

Cast Steel Thread Protectors with Lifting Bails.

Permanently Marked with Unique Identification No.

Technical Information :
SANTO's Cast Steel Lifting Bail Thread Protectors are manufactured using high Quality Steel Castings conforming to ASTM A27 Grade 60-30, heat treated, shot blasted and precision machined for fitment on appropriate connection.

Castings are thoroughly inspected & tested for Chemical Analysis, Physical properties & MPI to ensure compliance with relevant standards. Finish Machined Cast Steel Lifting Bails are tested for "Pull Test". Each individual Bail is permanently stamped with a Unique ID Number (UIN) for complete traceability.

Therefore SANTO's Cast Steel Lifting Bails are CERTIFIED and are supplied with Manufacturer's Works Inspection I Test Certificate. Finish Machined Cast Steel Lifting Bails are phosphatized and painted in Red color or color of customer's choice.

SANTO's Bails are filled with a Heavy Duty Plastic Thread Protector at its Threaded End to avoid damages during storage and handling in transit.

Each individual Bail is packed in a separate carton bearing details of Bail packed like Size , Thread Form and UIN for ease of identification during handling and storage.

SANTO's Bails are different than others because:
Bails are individually tested and Works Inspection / Test Certificate provided without any extra cost. Each Individual Bail is filled with a Heavy Duty Plastic Thread Protector without any extra cost. Each individual Bail is packed in a separate carton bearing details of Bail packed like Size, Thread Form and UIN for ease of identification during handling and storage, without any extra cost. Above all SANTO is willing to provide Free Sample for customer's evaluation, Just click sales@santoprotectors.org and you have the sample delivered without any cost

Sizes Offered For :

2 7/8” IF , 3 ½” IF , 4” IF , 4 ½” IF , 3 ½” FH , 4” FH , 6 5/8” FH , 2 7/8” REG, 3 ½” REG , 4 ½” REG , 6 5/8” REG , 7 5/8” REG & 8 5/8” REG PIN & BOX.

We can also offer Cast Steel Lifting Bail for any size of Proprietary Connection as per customer’s requirements.

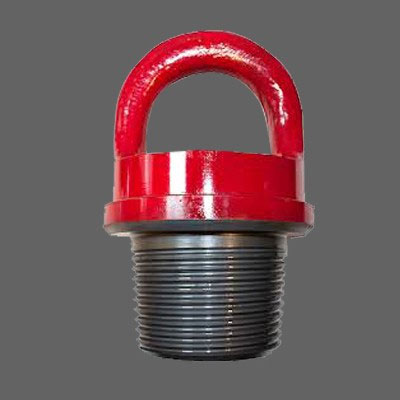

Pin

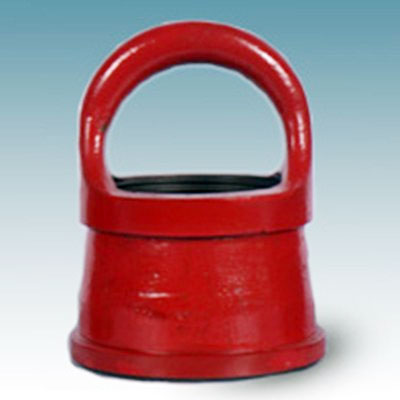

Box
Box & Pin
